Assaluye | Bushehr
Fabrication Yard
Loading Offloading Port

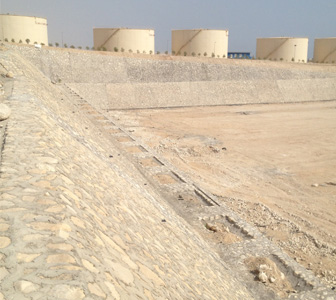

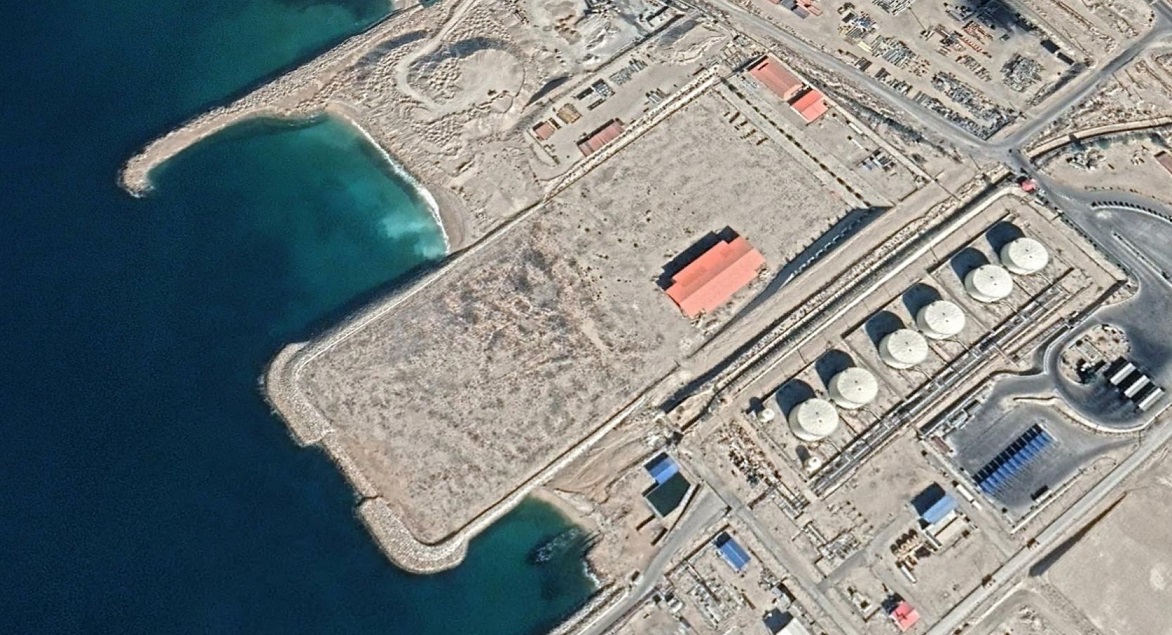

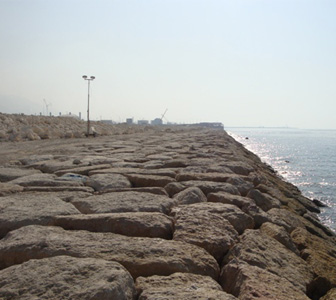

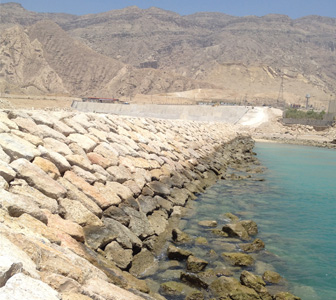

Due to increasing demand for new offshore installations and maintenance activities, the fabrication yard was constructed on Aug, 8, 2014 in assaluye, Bushehr province. The yard expand in an area of about 80,000 m2 (40,000 m2 land +40,000 m2 reclaimed) with quay wall having the length of over 70 m and water depth of more than -5 m CD. The quay wall level is 3.5 m and has direct access to Persian Gulf. The facility is equipped with different workshops, industrial sheds, warehouses and open area for structure fabrication. The yard is also capable of loading out the fabricated platforms through 100m length skid way and 5,000 ton quay capacity.
| ISI goals of investment in Constructing Assaluye yard are as follows: |
|---|
2- Increasing the share of domestic companies in the engineering design, procurement, construction, installation and commissioning offshore Platforms.
3- Promotion of scientific and managerial capabilities through the
development of Professional infrastructure, recruit specialists and improve the local technology in accordance with international Standard.
| Index | Description | Unit | Remarks |
|---|---|---|---|
| 1 | TOTAL AREA | 80,000 M2 | 485 M X 165 M EXPANDABLE TO 180,000 M2 |
| 2 | INDUSTRIAL SHED | 1,800 M2 | 25 M X 72 M WITH 10 TON CRANE |
| 3 | WAREHOUSE | 500 M2 | AIR CONDITIONED (Hot & Cold) |
| 4 | OPEN WAREHOUSE | 2,800 M2 | 80 X 35 M |
| 5 | PAINTING/ BLASTING SPACE | 3,200 M2 | 08:00 to 13:00 |
| 6 | WORKERS RESENTIAL | 720 M2 | CAPASITY OF 150 PERSON |
| 7 | ENGINEERS & MANAGERS RESIDENTIAL | 720 M2 | CAPACITY OF 30 PERSON |
| 8 | RESTURANT | 320 M2 | CAPACITY OF 100 PERSON |
| 9 | OFICE BUILDING | 500 M2 | 16 ROOMS, 31 M2 EACH |
| 10 | CAR PARKING | 1,200 M2 | CAPACITY OF 24 CARS |
| 11 | HEAVY MACHINERY PARKING | 600 M2 | CAPACITY OF 7 |
| 12 | PREFABRICATION AREA | 8,100 M2 | 135 X 60 M |
| 13 | WORKSHOP AREA | 11,700 M2 | 130 M X 90 M |
| 14 | FINAL ASSEMBLY AREA (Skid Way) | 2,000 M2 | 20 M X 100 M CAPACITY 3,000 MT UP TO 10,000 |
| 15 | LOADOUT BERTH (Jetty) | 1,500 M2 | 30 M X 50 M CAPACITY OF 3,000 MT UP TO 10,000 BARGE Capacity UP TO 7,000 MT -5CD DEPTH |
| 16 | MANUFACTURING EQUIPMENT | Lot | CRANE, CNC PIPE CUTTING, CNC PLATE CUTING WELDING (RECTIFIER, TIG, MIG ETC.) HYDROULIC WRENCH, TESTING EQUIPMENT, LORRY, VAN... |
| 17 | Yard Facility | Lot | Power plant, Potable Water Treatment (RO), Internet Network and etc. |
Capabilities
-
Fabrication Yard 80,000M2
485x165M
Expandable to 180,000 M2 -
Welding and Prefabrication Shop 1,800m2
25mx75m
with 10 ton Craine -

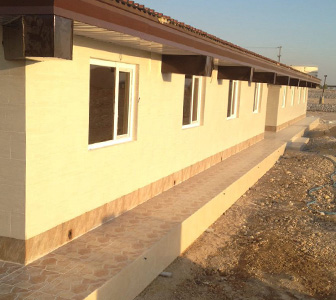

Building Accommodation Workers 150 men
Engineer 30 men
Restaurant 100 men
Offices 16 room -
Fabrication Area 8,100m2
135x60m -
Final Assembly Area Skidway
2,000m2
20m x 100m
Capacity 3,000 Mt up to 10,000
